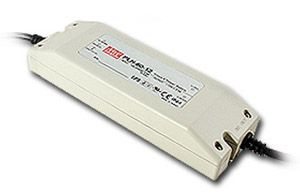

24vdc-96w 4A Class 2 (LPS) Power Supply
ITEM # 21-1033-000
| Form Factor |
|
| Function | Constant Voltage Power Supply |
| Rated Current | 4A (96watt version) |
| Rated Power | 96w (recommended to run at 90% or less duty cycle) |
| Frequency Range | 47~63 Hz |
| Operating Temperature | -30C to +50C derate linearly from 40C-50C for 60% power |
| Output Cable | Heavy Duty two wire output harness (red 24v +/ black 24v -) |
| Power Range | 90~295vAC |
| Input Cabler | 10" UL approved feeder cable with Blue (hot), Brown (neutral) and Green(ground) flying leads Customer supplied plug |
| Power Factor | 0.95/115vAC, 0.95/230vAC |
| Cooling | Free air convection |
| Efficiency | 88.5% |
| Input Amperage rating | 100~240vAC 1.4A |
| Compliance | LPS, UL879, UL1310, UL8750, CSA C22.2 No.207-M89 -0-08, TUV EN60950-1 |
| Package Type | Plastic |
| IP Rating | IP64 |
| Dimensions | 7.87"(200mm) x 277"(70.5mm) x 1.38"(35mm) |
| Weight | 1.248lb (0.52kg) |
| Manufacturing | Made in China |
BACKGROUND. High quality 96 LPS power supply tested by ETL to be part of Convering Systems's Listed LED lighting offering. Universal AC input/24vdc output.
