  1. FAQ Lighting

Setting up credientials within Lutron Designer to communicate with e-Node 4x00.



Review the applicable document for respective e-Node model.

  1. Quick Start Guide Integration with Lutron LEAP protocol devices and e-Node 4000/4100

Important Steps that must be followed before the e-Node can be used to communicate with Lutron LEAP protocol devices.

  1. Make sure you have selected the applicable e-Node/xxxx for your system requirements.

    Typically, you will generally need one e-Node 2000/4000 gateway for 1-254 connected ILC-xx0 controllers. Alternatively, you will need one e-Node dmx 2100/4100 gateway for each 32-DMX fixtures. Finally, you will need (at least initially) 1 e-Node/4x00 gateway each connected ILC-640d (contact factory for any news on changes to this current specification).

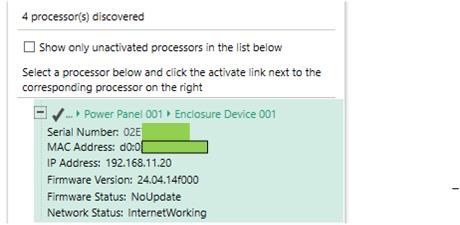

  2. Within Designer, open the Activate window and write down the IP address of your main Lutron processor with which the e-Node will establish communication.

    Document this IP address for use later on in the Article.

    xxxx
  3. While in your same Lutron Designer project, naviate to Tools/Configure Integration and enter a new set of credentials for this communication.

    After you have entered in a new set of credentials, document these for later use, and upload these new changes to your project file to your Lutron processor.

    xxxx
